The Tactics Wizard is a step by step questionnaire that helps further identify Function-Failure & Failure Modes for a component. After each question is answered you will be presented with another question until you reach the end of the questionnaire tree.
Important
If the Tactics Wizard has not been configured, it will not be available for use in the Tactics module. The questions are created in the Tactics Configuration Module by your administrator (refer to the article on Module Configuration).
How to use the Tactic Wizard:
- Choose the appropriate item in your hierarchy, select the Tactics module and then the Tactics tab (if required).

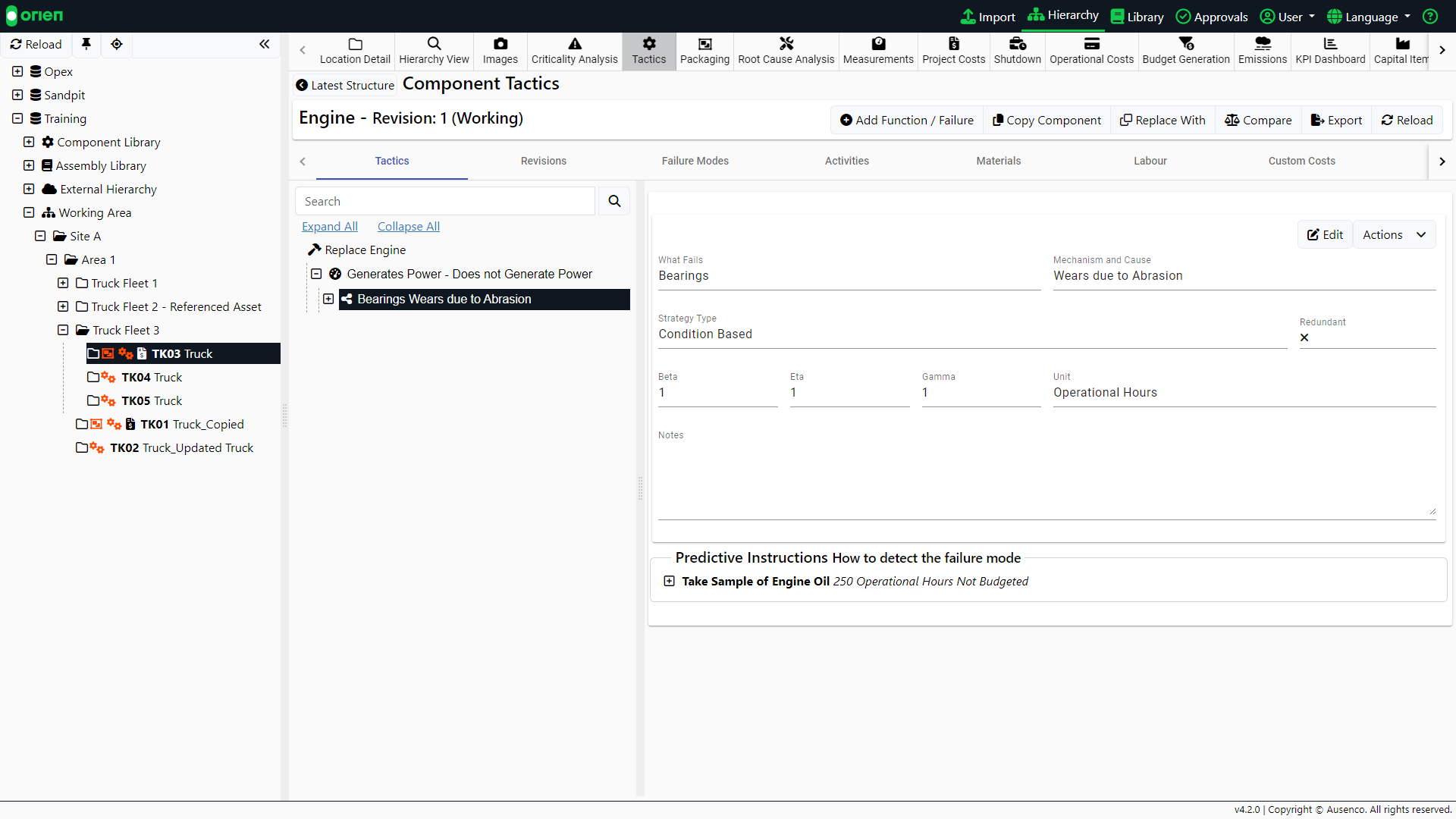

- Select the Component from the Structure to open the Component Tactics, and then select the Edit button against the Failure Mode you want to edit.
-

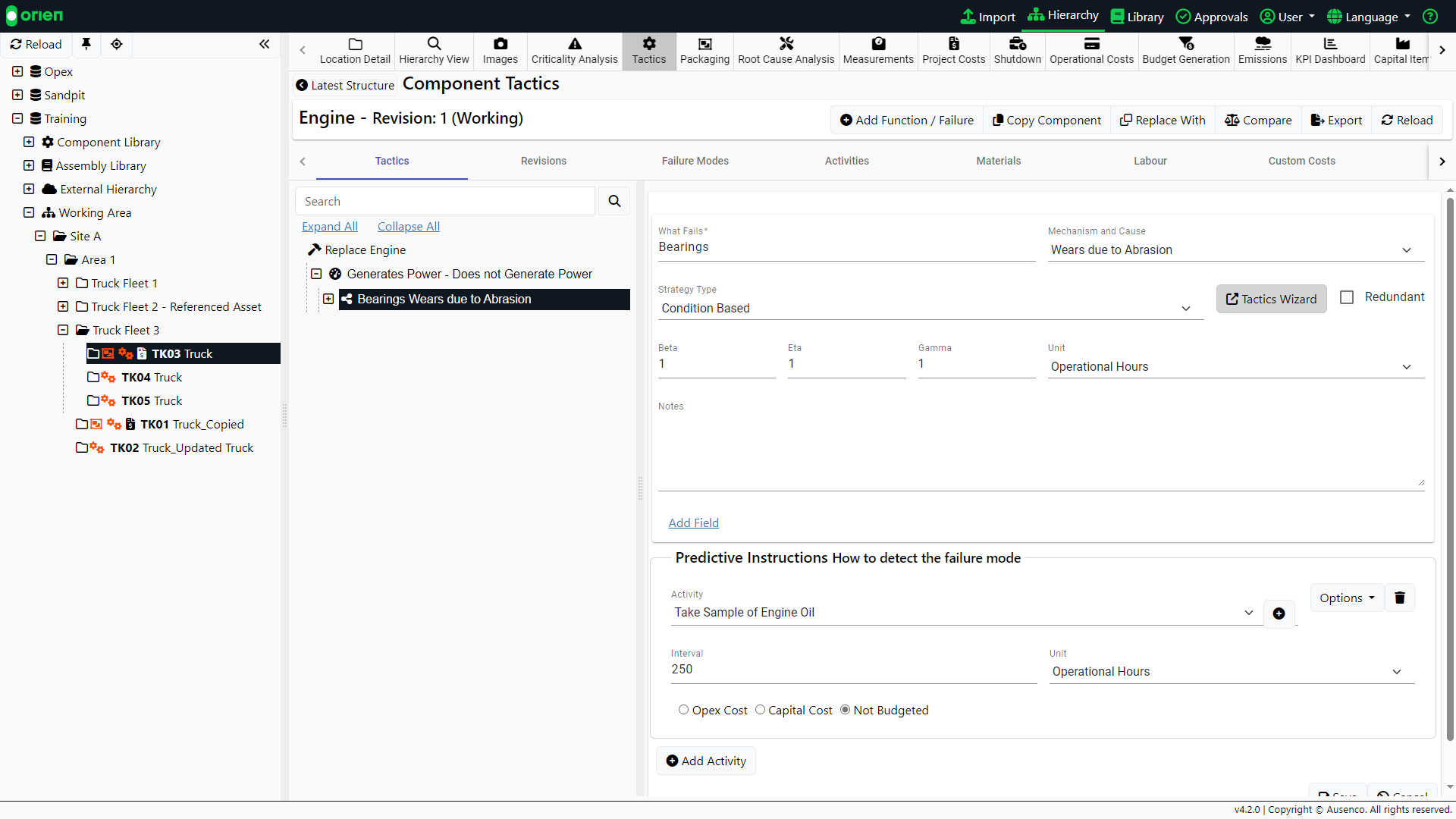

Select the Tactics Wizard button.

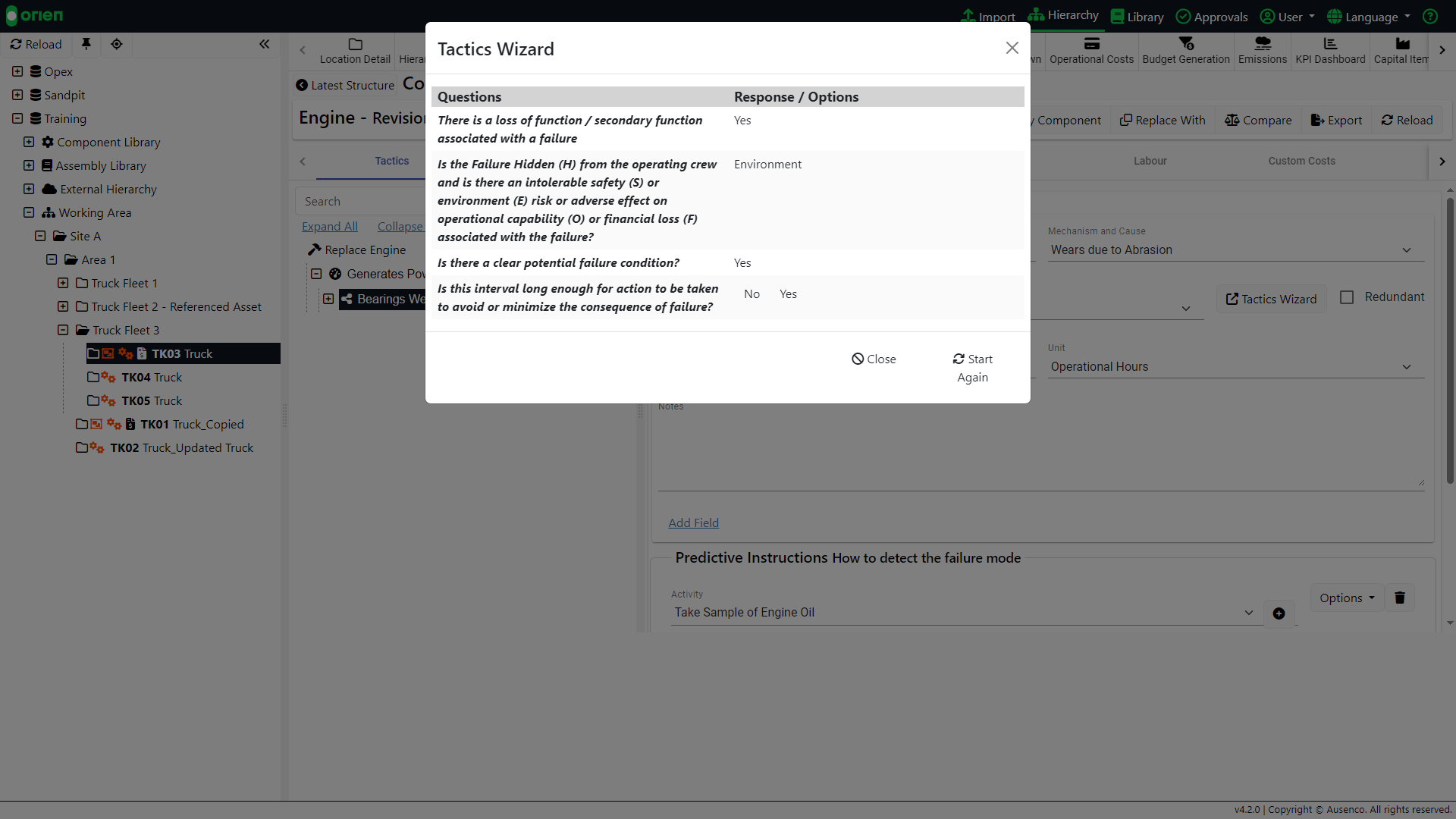

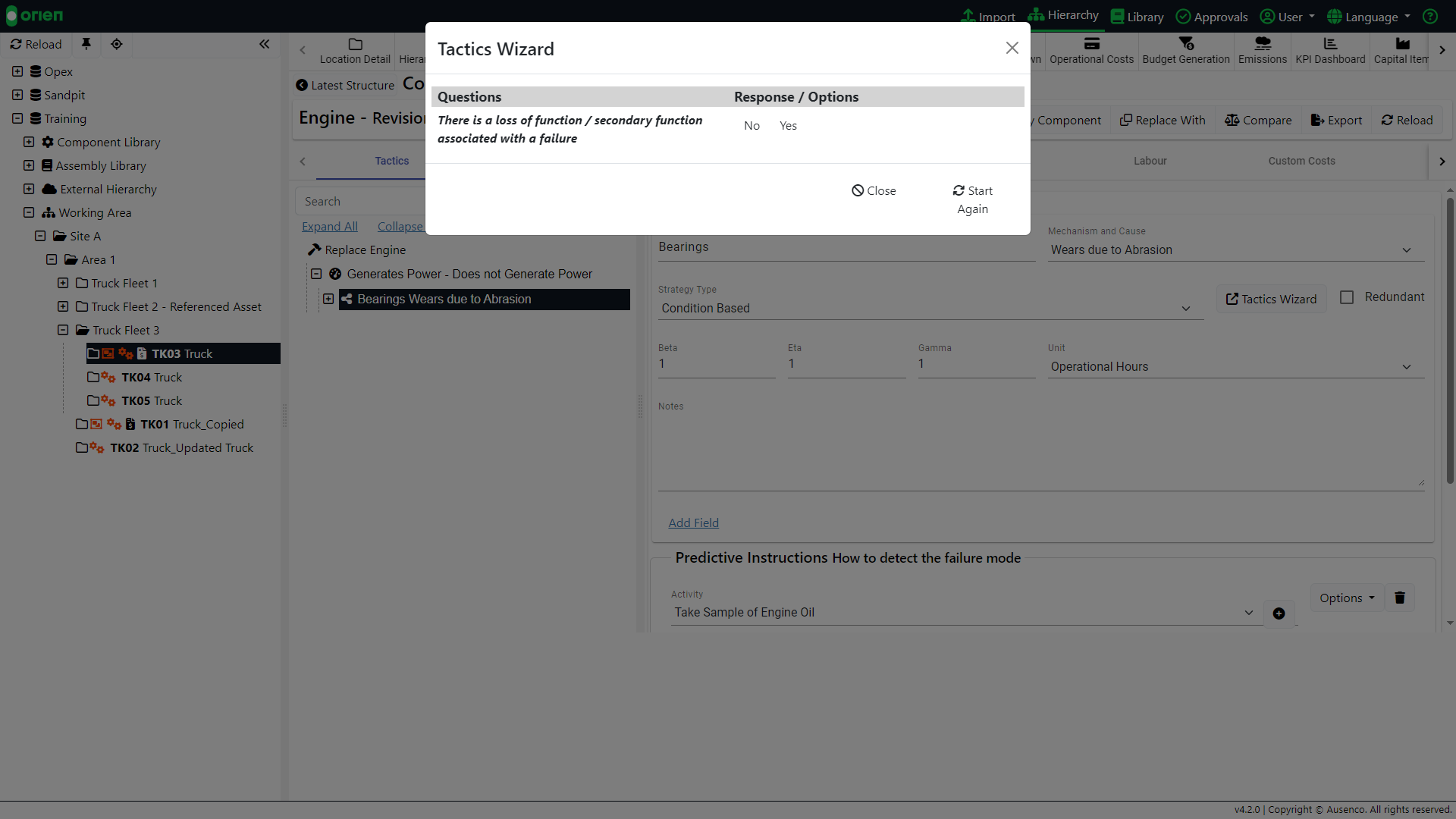

- You will be presented with first question of the questionnaire tree. Answer each question until the Tactics Wizard disappears. Finalise your answers by clicking the Save button on the Failure Mode card.
Important
If you close out of the questionnaire while in progress, you will lose the data you have entered.
- To view your answers, Select the Tactics Wizard button.
Note
Depending on what your administrator sets, you can have more than one response to a question, and you may set the response to more than just YES or NO.
